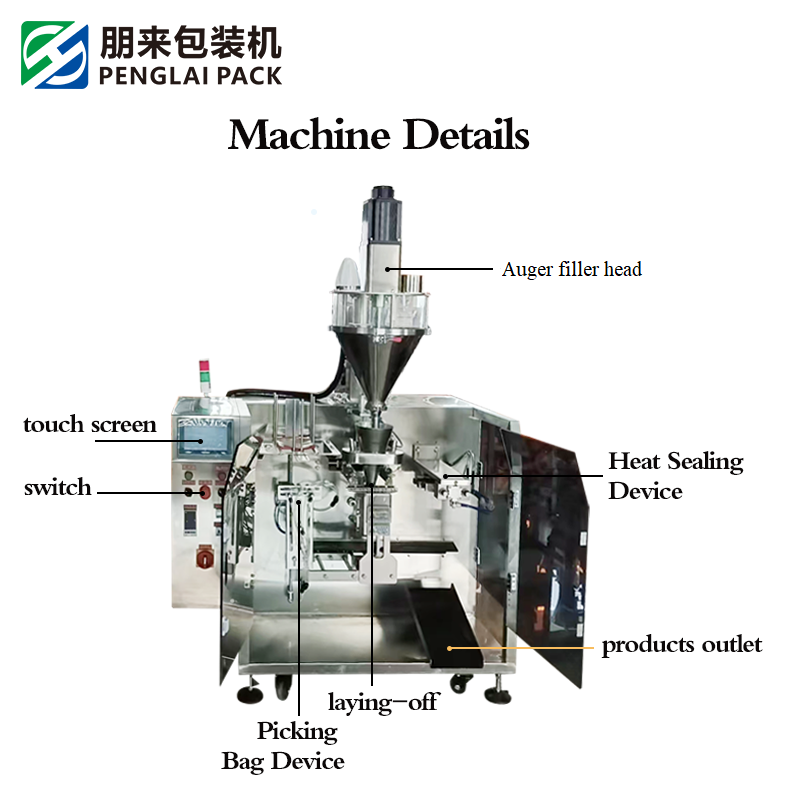

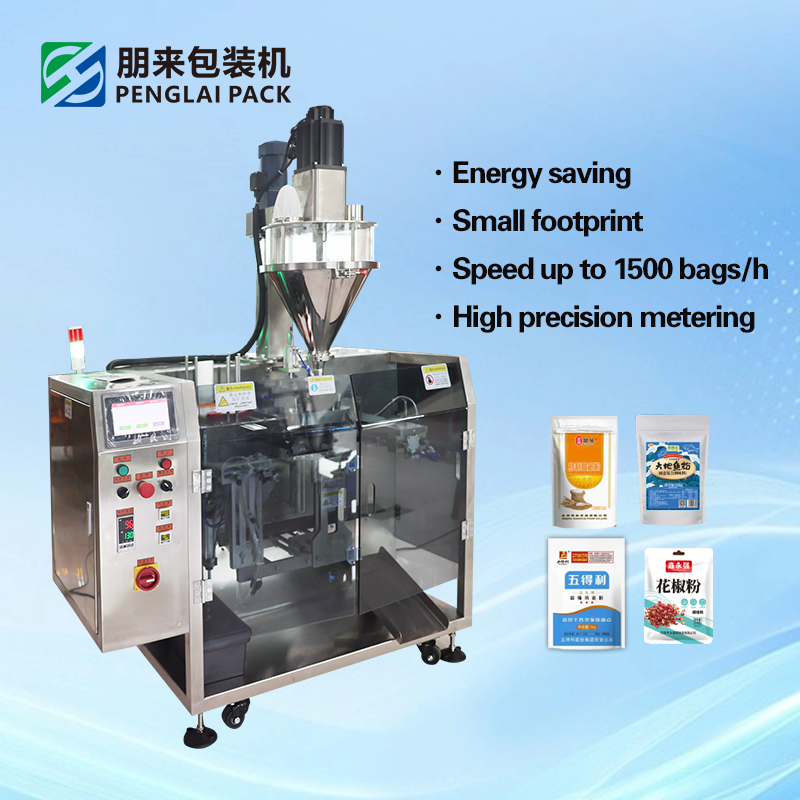

For the single-station premade bag machine paired with an auger filler, the application scope centers on various free-flowing dry powders. Its core advantage lies in achieving automated packaging of powders in premade bags with a relatively small footprint and low investment, suitable for small to medium batch production or multi-variety flexible manufacturing scenarios.
| Parameter | Typical Range / Representative Values | Notes / Source Examples |
|---|---|---|
| Working Stations | 1 | Single station: one bag processed at a time (pick-up → open → fill → seal → output) |
| Bag Width | 80 mm – 300 mm | Ranges vary: 80-300mm; 100-300mm; 100-260mm |
| Bag Length | 100 mm – 350 mm | Ranges vary: 100-300mm; 120-350mm; 150-400mm |
| Packing Speed | 5 – 25 bags/min | Low-end compact: 5-15 bpm; larger: 15-25 bpm. Verify high-speed claims with video demo |
| Filling Range | 5 g – 1500 g (depends on filler) | Machine handles bag; actual weight set by paired auger filler. Examples: 5-1500g; 200-1000g |
| Bag Types | Stand-up, flat, zipper, 3-side seal, gusset | Most single-station machines handle common premade pouch styles with minor adjustments |
| Sealing Type | Straight grain (standard), reticulate (optional) | Sealing width typically 10mm (5–20mm customizable) |
| Control System | PLC + Touch Screen (HMI) | Often Mitsubishi or Siemens PLC with 7-inch color screen |
| Contact Parts Material | SUS304 Stainless Steel | Essential for food/powder hygiene compliance |
| Air Pressure | 0.65 – 0.8 MPa | Air consumption typically ~0.3 – 0.5 m³/min |
| Power Supply | 220V, Single Phase, 50/60Hz, 1.0 – 1.5 kW | Single-phase common for compact models; larger domestic models may use 380V |
| Dimensions (L×W×H) | Approx. 1750 × 510 × 1300 mm | Compact footprint (~1.7m long) — key advantage of single-station design |
| Machine Weight | Approx. 150 – 365 kg | Varies with frame construction and included features |
Our packaging equipment is widely used in chemical, daily chemical, food, medicine, health products and other industries. At present, it has obtained CE recognitionCertificate, TUV certification, SGS certification and more than 20 national patents
